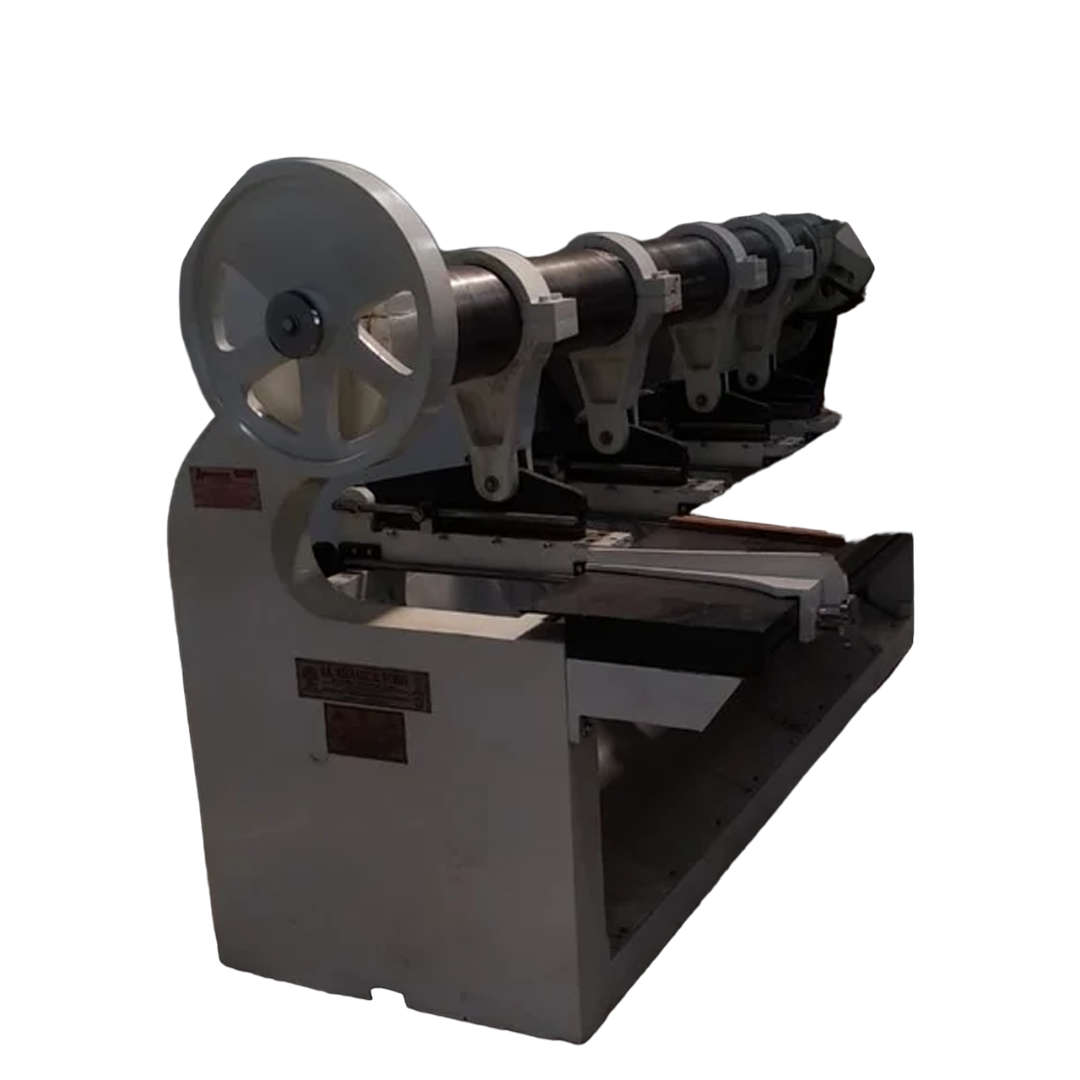

Three slots and one corner cutting is done simultaneously on this machine. The distance between slotting and corner cutting heads are adjustable with gear and rack mechanism provided with the machine. Two side gauges are provided for accurate feeding. Minimum distance between two dies is 7" Corner width is 3.5"
| Size | Motor (H.P) | Slot Depth (Max) | Wt Approx. (MT.) | Floor Space |
|---|---|---|---|---|
| 65" | 2.0 | 18" | 1.8 | 7' x 4' |
| 75" | 3.0 | 18" | 1.8 | 8' x 4' |
| 85" | 3.0 | 18" | 1.8 | 9' x 4' |
| 95" | 5.0 | 18" | 1.8 | 10' x 4' |
